Install a clean Kubernetes cluster on Debian 12

Ensure the /etc/hosts files are equal on all three the machines:

192.168.20.218 K8S01.verhaeg.local K8S01
192.168.20.219 K8S02.verhaeg.local K8S02
192.168.20.220 K8S03.verhaeg.local K8S03

Disable swap:

systemctl --type swap

  UNIT          LOAD   ACTIVE SUB    DESCRIPTION
  dev-sda3.swap loaded active active Swap Partition

systemctl mask dev-sda3.swap
sed -i '/ swap / s/^\(.*\)$/#\1/g' /etc/fstab
reboot

Prepare the installation of containerd:

cat <<EOF | tee /etc/modules-load.d/containerd.conf
overlay
br_netfilter
EOF

modprobe overlay && modprobe br_netfilter

cat <<EOF | tee /etc/sysctl.d/99-kubernetes-k8s.conf
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
net.bridge.bridge-nf-call-ip6tables = 1
EOF

Install containerd:

apt-get update && apt-get install containerd -y

Configure contianerd so that it works with Kubernetes:

containerd config default | tee /etc/containerd/config.toml >/dev/null 2>&1

Both the kubelet and the underlying container runtime need to interface with control groups to enforce resource management for pods and containers and set resources such as cpu/memory requests and limits. To interface with control groups, the kubelet and the container runtime need to use a cgroup driver. Set cgroupdriver to systemd (true) on all the nodes:

nano /etc/containerd/config.toml

[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options]
BinaryName = ""
CriuImagePath = ""
CriuPath = ""
CriuWorkPath = ""
IoGid = 0
IoUid = 0
NoNewKeyring = false
NoPivotRoot = false
Root = ""
ShimCgroup = ""
SystemdCgroup = true

Restart and enable containerd on all nodes:

systemctl restart containerd && systemctl enable containerd

Add Kubernetes apt repository:

apt-get install curl pgp -y
echo "deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.28/deb/ /" | tee /etc/apt/sources.list.d/kubernetes.list
curl -fsSL https://pkgs.k8s.io/core:/stable:/v1.28/deb/Release.key | gpg --dearmor -o /etc/apt/keyrings/kubernetes-apt-keyring.gpg

Install Kubernetes tools:

apt-get update && apt-get install kubelet kubeadm kubectl -y && apt-mark hold kubelet kubeadm kubectl

Install Kubernetes cluster with Kubeadm. Kubelet doesn’t appreciate the command-line options anymore (these are deprecated). Instead, I suggest to create a configuration file, say ‘kubelet.yaml’ with following content.

Create the kubelet.yaml file on the master node (K8S01):

nano kubelet.yaml

apiVersion: kubeadm.k8s.io/v1beta3
kind: InitConfiguration
---
apiVersion: kubeadm.k8s.io/v1beta3
kind: ClusterConfiguration
kubernetesVersion: "1.30.0" # Replace with your desired version
controlPlaneEndpoint: "K8S01"
---
apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration

Initialise the cluster:

kubeadm init --config kubelet.yaml --upload-certs

Result:

Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

Alternatively, if you are the root user, you can run:

  export KUBECONFIG=/etc/kubernetes/admin.conf

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

You can now join any number of the control-plane node running the following command on each as root:

  kubeadm join k8s01.verhaeg.local:6443 --token 965cpz.xvmun07kjrezlzg9 \
        --discovery-token-ca-cert-hash sha256:3ea38e43e5304e0124e55cd5b3fb00937026a2b53bc9d930b6c2dab95482225a \
        --control-plane --certificate-key e48ada5b6340b8e217bcf4c7c5427ae245704be43eee46c07bfa0b6e1c4abdd8

Please note that the certificate-key gives access to cluster sensitive data, keep it secret!
As a safeguard, uploaded-certs will be deleted in two hours; If necessary, you can use
"kubeadm init phase upload-certs --upload-certs" to reload certs afterward.

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join k8s01.verhaeg.local:6443 --token 965cpz.xvmun07kjrezlzg9 \
        --discovery-token-ca-cert-hash sha256:3ea38e43e5304e0124e55cd5b3fb00937026a2b53bc9d930b6c2dab95482225a

To start interacting with cluster, run following commands on master node,

mkdir -p $HOME/.kube
cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
chown $(id -u):$(id -g) $HOME/.kube/config

Let the other nodes join the cluster:

kubeadm join k8s01.verhaeg.local:6443 --token bcd2xw.32pzfgroijg1sax3 \
        --discovery-token-ca-cert-hash sha256:0c0f18cf32bc2342024efce9313e0e4fcf8a2b87275fd33e9ceb853d77b41f8b \
        --control-plane

Result:

root@K8S01:~# kubectl get nodes
NAME    STATUS     ROLES           AGE   VERSION
k8s01   NotReady   control-plane   62s   v1.28.11
k8s02   NotReady   <none>          26s   v1.28.11
k8s03   NotReady   <none>          21s   v1.28.11

Install Calico (container networking and security):

kubectl apply -f https://raw.githubusercontent.com/projectcalico/calico/v3.26.1/manifests/calico.yaml

Adjusting the configuration of the RFRobot SEN0395

Manual: SEN0395 Manual

Connect to the device using a serial port (115200 baud rate, 1 stop bit, 8 data bits, no parity bit, no flow control):

cu -l /dev/ttyS0 -s 115200

The sensor should start showing information on the screen:

The 0 should change into 1 when the sensor detects human presence.

Send the sensorstop command to stop the sensor and enter the configuration mode:

$JYBSS,0, , , *
sensorStop
Done
leapMMW:/>

Adjusting sensitivity

This seems to be possible, but I cannot find any documentation on the related commands.

Adjusting range

Table source: SEN0395 manual

ExampleCommand
(Default configuration) Sensing distance: “0m to 3m”
(0m=0 * 0.15cm, 3m=20 * 0.15cm)		detRangeCfg -1 0 20
Sensing distance: “1.5m to 3m”
(1.5m=10 * 0.15cm, 3m=20 * 0.15cm)		detRangeCfg -1 10 20
Sensing distance: “1.5m to 3m” “7.5m to 12m”
(1.5m=10 * 0.15cm, 3m=20*0.15cm)
(7.5m=50 * 0.15cm， 12m=80 * 0.15cm)		detRangeCfg -1 10 20 50 80
Sensing distance: “1.5m to 3m” “7.5m to 12m” “13.5m to 15m”
(1.5m=10 * 0.15cm， 3m=20 * 0.15cm)
(7.5m=50 * 0.15cm, 12m=80 * 0.15cm)
(13.5m=90 * 0.15cm, 15m=100 * 0.15cm)		detRangeCfg -1 10 20 50 80 90 100
Sensing distance: “1.5m to 3m” “7.5m to 12m” “13.5m to 15m” “15.75m to 16.5m”
(1.5m=10 * 0.15cm, 3m=20 * 0.15cm)
(7.5m=50 * 0.15cm, 12m=80 * 0.15cm)
(13.5m=90 * 0.15cm, 15m=100 * 0.15cm)
(15.75m=105 * 0.15cm, 16.5m=110 * 0.15cm)		detRangeCfg -1 10 20 50 80 90 100 105 110

Save configuration

saveCfg 0x45670123 0xCDEF89AB 0x956128C6 0xDF54AC89

(Re)start sensor operations

sensorStart

Configuration

Entrance: detRangeCfg -1 0 12

Upstairs: detRangeCfg -1 . .

Technical architecture of my digital home

This article describes the components that build up the architecture of my (digital) home.

  • Logical configuration (ArangoDB): the logical configuration includes the areas (rooms) in the house, the sensors and actors located in those areas, and the “scenes” that can be applied to actors and areas.
  • Use-case controllers (custom .NET Core worker services): I’ve build a separate micro service for each use-case, for example, controlling lights, planning washer, dishwasher, and dryer, and planning the generation of domestic hot water.
  • Digital Twin (Eclipse Ditto): the Digital Twin stores the state of all connected sensors and is used by the use-case controllers to consume sensor states or push commands back down to the sensors.
  • Messaging (Slack): I’m using Slack as a messaging service to interact with my home. Slack informs me on specific state changes in the Digital Twin and I can feed commands in Slack to influence the behavior of my home. I try to minimize this as most decisions should be fully automated.
  • Sensor services (custom .NET Core worker services): the sensor services read sensor states via open or proprietary protocols. They are also responsible for pushing commands down to actors.
  • Sensor history (InfuxDB): InfluxDB stores the (relevant) history of the Digital Twin as well as the history from the different energy services that feed directly into InfluxDB.
  • Sensor configuration (ArangoDB): ArangoDB stores the information needed to communicate with local and cloud-based sensors.
  • Visualisation (Grafana): I’m using Grafana as a visualisation front-end.

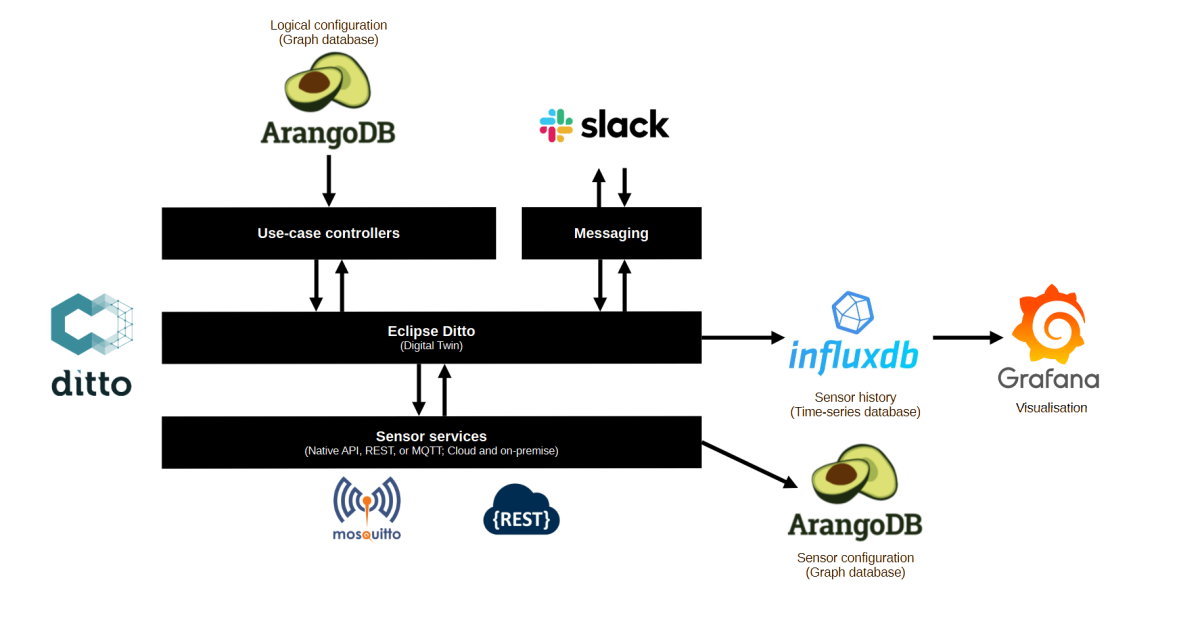

Visualization of the architecture of my digital home.

InfluxDB api unavailable after x attempts

The InfluxDB start-up script checks if the HTTP service is running by trying to connect to it. However, I have disabled HTTP in my configuration and use HTTPS. This behavior is also described on Github.

You can workaround this issue by adjusting the InfluxDB service configuration file (/etc/systemd/system/influxd.service). The commented out lines are old configuration and replaced by the used lines.

[Unit]
Description=InfluxDB is an open-source, distributed, time series database
Documentation=https://docs.influxdata.com/influxdb/
After=network-online.target

[Service]
User=influxdb
Group=influxdb
LimitNOFILE=65536
EnvironmentFile=-/etc/default/influxdb
ExecStart=/usr/bin/influxd -config /etc/influxdb/influxdb.conf $INFLUXD_OPTS
#ExecStart=/usr/lib/influxdb/scripts/influxd-systemd-start.sh
KillMode=control-group
Restart=on-failure
Type=simple
#Type=forking
PIDFile=
#PIDFile=/var/lib/influxdb/influxd.pid

[Install]
WantedBy=multi-user.target
Alias=influxd.service

Downsampling smart meter data with InfluxDB

This article is based on the official InfluxDB documentation on Downsampling and data retention.

I’m using a P1 (smart energy meter) database for this example.

First, change your default retention policy and create at least one additional retention policy:

CREATE RETENTION POLICY "168_hours" ON "P1_External" DURATION 168h REPLICATION 1 DEFAULT
CREATE RETENTION POLICY "2yr" ON "P1_External" DURATION 104w REPLICATION 1

Create a test query that summarizes the data that needs to be stored in the downsampled data:

SELECT mean("current_delivery") as "current_delivery", mean("current_usage") as "current_usage", last("total_usage_gas") as "total_usage_gas", last("total_usage_t1") as "total_usage_t1", last("total_usage_t2") as "total_usage_t2", last("total_delivery_t1") as "total_delivery_t1", last("total_delivery_t2") as "total_delivery_t2" FROM energy_p1_actual GROUP BY "name", time(1h) ORDER BY time DESC LIMIT 10

Then, define a continuous query from this:

CREATE CONTINUOUS QUERY "cq_60m" on "P1_External" BEGIN SELECT mean("current_delivery") as "current_delivery", mean("current_usage") as "current_usage", last("total_usage_gas") as "total_usage_gas", last("total_usage_t1") as "total_usage_t1", last("total_usage_t2") as "total_usage_t2", last("total_delivery_t1") as "total_delivery_t1", last("total_delivery_t2") as "total_delivery_t2" INTO "2yr"."energy_p1_history" FROM energy_p1_actual GROUP BY "name", time(1h) END

As our retention policy is set to 2 hours the continuous query will run every two hours to summarize the data.

Configure TLS for Mosquitto using a self-signed certificate

This article describes how to configure TLS for Mosquitto using a self-signed certificate. I assume that Mosquitto is installed and running.

Browse to the right directory:

cd /etc/mosquitto/certs

Generate a 3DES private key using OpenSSL and put it in the moquitto directory for certificates:

openssl genrsa -des3 -out ca.key 2048

Generate the 3DES certificates using the private key:

openssl req -new -x509 -days 3650 -key ca.key -out ca.crt

Copy the certificate to the right directory:

sudo cp ca.crt /etc/mosquitto/ca_certificates/

Generate an RSA private key :

openssl genrsa -out server.key 2048

Generate the RSA public key:

openssl req -new -out server.csr -key server.key

Generate the RSA certificates using the private key:

openssl x509 -req -in server.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out server.crt -days 3650

Configure Mosquitto to listen for TLS connections:

cd /etc/mosquitto/conf.d
nano listener.conf

listener xxxx 192.168.x.x
cafile /etc/mosquitto/ca_certificates/ca.crt
certfile /etc/mosquitto/certs/server.crt
keyfile /etc/mosquitto/certs/server.key
require_certificate false

I don’t enforce the usage of a certificate.

Go to the certificates folder and give the right permissions to the generated certificates.

cd /etc/mosquitto/certs
chmod 400 server.key
chmod 444 server.crt
chown mosquitto server*

Restart the Mosquitto service:

systemctl restart mosquitto.service

This is working for me now. However, while I was documenting this process I figured out I might have mixed up the 3DES and RSA certificates in the Mosquitto configuration. Something to look into at a later moment in time.

Make Proxmox VLAN aware

I’m using Proxmox as a hypervisor to run my virtual machines and use two VLANs in my home network: one for normal traffic and one separate VLAN for IoT traffic. Virtual machines should be connected to one of those networks. The normal network is typically untagged (vlan ID 20) while the IoT traffic is tagged with VLAN 21.

Configuration file: /etc/network/interfaces

auto lo
iface lo inet loopback

iface eno1 inet manual

auto vmbr0
iface vmbr0 inet manual
        bridge-ports eno1
        bridge-stp off
        bridge-fd 0
        bridge-vlan-aware yes
        bridge-vids 2-4094

auto vmbr0.20
iface vmbr0.20 inet static
        address 192.168.20.x/24
        gateway 192.168.20.1

This should result in the following Proxmox network configuration:

Proxmox host system network configuration

Now you can easily add a network adapter to a virtual machine and tag it with the correct VLAN.

Virtual machine network adapter configuration, including tagged VLAN.
